TR-606D 3G GPS Vehicle Tracker | GPS ติดตามรถยนต์ระบบ 3G

TR-606D GPS Vehicle Tracker
3 year warranty
free sim web

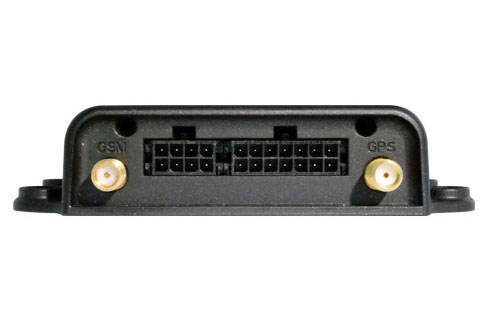

tr606d_front
TR-606D เป็น GPS ติดตามรถยนต์ประสิทธิภาพสูงพร้อมการสื่อสารหลากรูปแบบ ทั้ง 2G และ 3G เหมาะสำหรับการควบคุมยานพาหนะแบบอัตโนมัติ (AVL) TR-606D ประกอบด้วยชิป GPS ความไวสูง และไมโครคอนโทรลเลอร์ ที่ได้รับการอกแบบเป็นอย่างดีจากทีมวิศวกรเพื่อให้มีขนาดกะทัดรัด น้ำหนักเบา ตัวเครื่องทำจากวัสดุคุณภาพสูง ทนทาน ติดตั้งง่าย ซ่อนได้มิดชิด สวยงาม TR-606D รายงานตำแหน่งของยานพาหนะแบบเวลาปัจจุบันและมีการเก็บข้อมูลเพื่อการดูย้อนหลังได้ และสามารถสั่งการยานพาหนะจากระยะไกลด้วยคลิกเดียวบนคอมพิวเตอร์

TR-606D ทำให้การจัดการยานพาหนะง่าย สะดวกและปลอดภัย สามารถตอบสนองได้ฉับไว และประสิทธิภาพอื่นๆอีกมากมาย TR-606D ได้ผ่านการตรวจรับรองตามมาตรฐานสากล (FCC: USA, CE: Europe, PTCRB) จึงมั่นใจได้ในคุณภาพของผลิตภัณฑ์ พร้อมรับประกันตัวเครื่องนานถึง 3 ปี

The TR-606D is a multi-functional and economically feasible communication platform for mobile positioning applications. It integrates highly sensitive GPS module, dual-band UMTS/HSDPA and quad-band GSM communication module with a powerful microcontroller that fits into a compact enclosure. The TR-606D has a solid and rigid housing, for simple installation. It provides real-time GPS positions anytime and anywhere with an open view to the sky, and offers precise positioning, and reports vehicle status to the server with necessary information shown on the map. Benefits such as enhanced fleet management, improved vehicle safety, emergency response, are all accomplished through the implementation of the TR-606D system.

TR-606D meets the international standards (FCC: USA, CE: Europe, PTCRB) for safety and reliability. TR-606D comes with 3 year warranty.

คุณลักษณะ TR-606D (Feature)

  • รองรับระบบ 3G Dual-Band UMTS/HSDPA 900/2100 MHz WCDMA
  • รองรับระบบGSM 4 แบบ 850/900/1800/1900 MHz
  • ใช้ชิปรับสัญญาณ GPS ความไวสูง
  • มีสายอากาศภายนอก
  • สามารถสื่อสารผ่านทาง SMS/TCP/UDP/HTTP
  • แจ้งเตือน ภาวะฉุกเฉิน ความเร็วเกินกำหนด การเคลื่อนที่ เมื่อถูกตัดแหล่งจ่ายไฟหรือไฟหมด
  • มี battery จ่ายไฟสำรองแบบ Li-polymer
  • รายงานตำแหน่งตามเวลาจริงและสถานะของยานพาหนะ
  • มี digital outputs 3 จุด, digital inputs 5 จุด, analog input 1 จุด, serial port 1 จุด และ support CAN-Bus
  • ตรึงสัญญาณ GPS ได้เร็ว มี A-GPS
  • สามารถรับฟังเสียงในบริเวณรอบตัวเครื่อง (เมื่อมี microphone เป็นอุปกรณ์เสริม)
  • สามารถกำหนดเขตเพื่อให้เครื่องแจ้งเตือนเมื่อมีการเคลื่อนย้ายออกนอกเขต
  • สามารถแจ้งเตือนเมื่อมีการเคลื่อนที่ หรือการบุกรุก โดยการโทรกลับหาเจ้าของทันที
  • มีเซเซอร์ตรวจจับการเคลื่อนไหว การเปลี่ยนทิศทาง
  • ไฟ LED แสดงสถานะ การเชื่อมต่อ 3G, การจับสัญญาณ GPS, การเปิดเครื่อง
  • มีการเก็บข้อมูลการเดินทาง Data Logger 3,000 จุด
  • ตั้งค่าความถี่ในการรายงานตำแหน่งได้
  • Web Service ติดตามแบบเวลาปัจจุบันบนแผนที่หรือภาพถ่ายทางอากาศ โดยข้อมูลจะเก็บสำรองไว้เป็นเวลา 3 เดือน
  • Dual-Band UMTS/HSDPA 900/2100 MHz WCDMA system
  • Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz system
  • Built in high sensitivity GPS system
  • Supports AT command via SMS/ TCP/UDP
  • Remote control via SMS/GPRS command
  • Real-time GPS position feedback and vehicle status monitoring
  • Built-in digital outputs (3), digital inputs (3), an ACC input, 1 analog input, and 1 serial port
  • Power supply for Li-ion battery and lead-acid battery
  • Supports multi geo-fence function
  • Power low/lost detection alarm
  • Motion sensor
  • 3 LED indicators for 3G, GPS, power status
  • OTA (Over the air) firmware upgrade
  • Data buffer storage 3,000 points
  • Interval report depends on customization
  • Indicate the location via internet and Web Service to show asset location on map or aerial view. The logging data will be kept for 3 months.
  • คุณประโยชน์ของ TR-606D

    gps tracking system < เชิญคลิกเพื่อดูคุณประโยชน์ของระบบติดตาม TR-606D

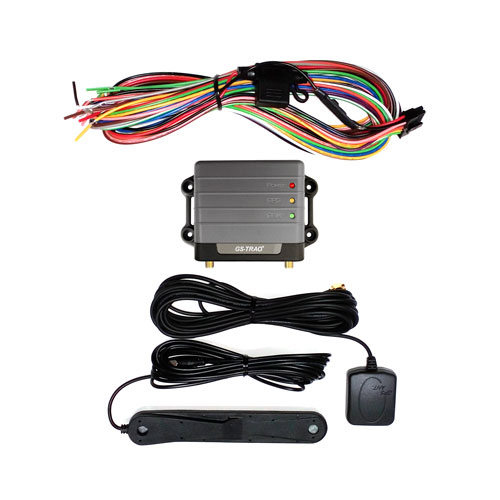

    tr606d settracking reports

    กรุณาโทรเพื่อรับข้อเสนอพิเศษที่ 02 719 0505, 086 612 5252
    โปรโมชั่นพิเศษ แถมฟรี SIM พร้อมการติดตามทางเว็ปนาน 6 เดือน มูลค่า 1,819 บาท ด่วนก่อนหมด

    บริการส่งสินค้าทาง EMS ฟรีทั่วประเทศ | Free Delivery
    *********************
    โอนเงินเข้าบัญชีออมทรัพย์ ธนาคารกสิกรไทย สาขา ซีคอนสแควร์
    ชื่อบัญชี: บจก. โกลบอลไฟว์
    เลขที่บัญชี: 095-2-08645-8

    บัญชีกระแสรายวัน ธนาคารกรุงไทย สาขาถนนพระราม 9
    ชื่อบัญชี: บจ. โกลบอลไฟว์
    เลขที่บัญชี: 076-6-01921-7

    บัญชีธนาคารอื่นๆ
    *********************
    แจ้งการโอนเงินและชึ่อ ที่อยู่ email: global5thailand@gmail.com

    Line ID: global5thailand

    โทร: 083 834 5353

    Specification:

    Communication
    UMTS/HSDPA 900/2100 MHz WCDMA
    Quad-Band GSM/GPRS/EDGE 850/900/1800/1900 MHz
    3G Antenna: External SMA Connector

    GPS Characteristics
    GPS Chipset: High Performance GPS chipset
    GPS Antenna Type: External SMA Connector
    Frequency: L1, 1575.42 MHz
    C/A Code: 1.023 MHz chip rate
    Channels: 20 channel all-in-view tracking

    Acquisition Rate
    Hot start: 1 sec
    Warm start: 38 sec
    Cold start: 42 sec
    Reacquisition: 0.1 sec

    Temperature
    Operating: -30°~80°C (w/o Optional Battery)
    Storage: -40°~85°C
    Humidity: 5% to 95% Non-condensing
    Battery Capacity (Optional)
    Rechargeable 820 mAh battery (3.7V), 5V for charging input.

    I/O Pin
    Ignition (ACC)
    SOS Emergency
    Digital Input: 3, Digital Output: 3, Analog Input: 1, Serial port: 1 (Customization)

    LED Indicator
    Power, GPS and GSM status.

    Sensor
    Build in Motion sensor

    Physical Characteristics
    Dimension: 98 * 71 * 22 mm
    Weight: 158 g

    Certifications
    FCC: USA
    CE: Europe
    PTCRB
