AT-5002 3G Long Life GPS Asset Tracker | GPS ติดตามทรัพย์สินจอมอึด ระบบ 3G

at-5000 GPS asset tracker gps trailer tracker

AT-5002 GPS ติดตามจอมอึด ระบบ 3G ถูกออกแบบมาให้มีความเสถียร วางใจได้ และทนทานทั้งฝุ่น กันน้ำ ทนแดด และมีแบตเตอร์รี่สำรองแบบ ประจุสูงเพื่อใช้ในการติดตามทรัพย์สินได้เป็นเวลานานๆนับเดือน ด้วยการออกแบบให้ทุกอย่างได้แก่เสารับสัญญาณGPS GSM 3G วงจร และแบตเตอร์รี่ บรรจุรวมกันอยู่ภายในกล่องกันน้ำทำจากวัสดุคุณภาพสูง ทนแดด ทนฝน ทนทาน AT-5002 GPS ติดตามจอมอึดจึงเหมาะ สำหรับติดตามหางคอนเทนเนอร์ หรือ ทรัพย์สินอื่นๆที่ไม่มีแหล่งจายไฟเป็นเวลานาน AT-5002 รับประกันตัวเครื่อง 1 ปี

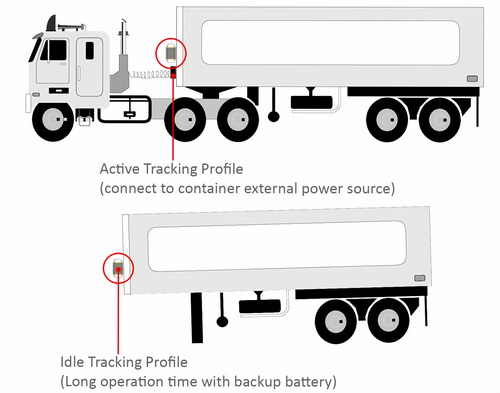

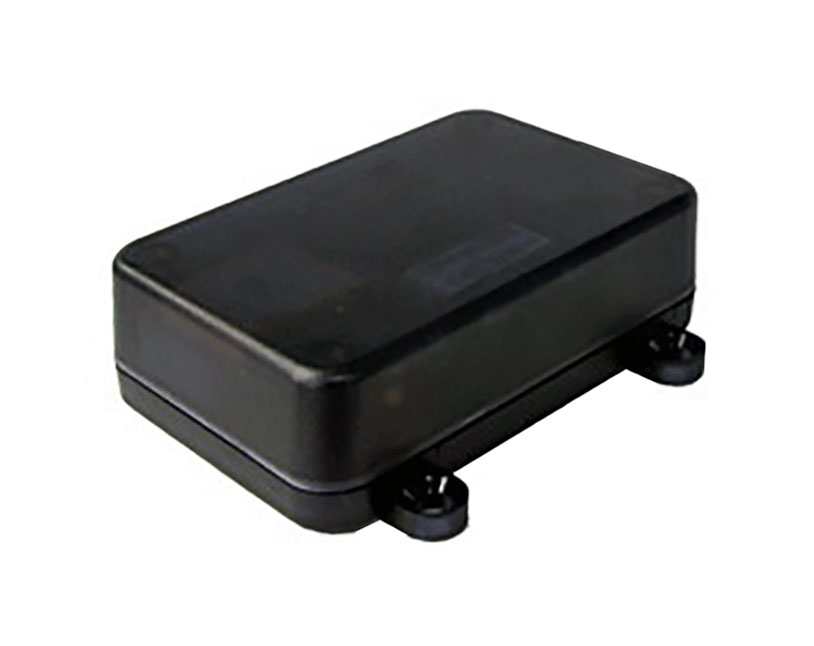

AT-5002 3G Long Life GPS Asset Tracker is designed for high stability, reliability and durability with IP67 dust / waterproof and UV proof housing. AT-5002 Long Life GPS Asset Tracker can withstand the most severe environments. It's built-in GPS antenna GSM antenna and high capacity Lithium Ion battery reduces installation cost considerably and can be well hidden in a vehicle to avoid tampering increasing the chance of recovery if the vehicle is stolen. AT-5002 Long Life GPS Asset Tracker is suitable for trailer tracking when sometime is leaved at the yard without power supply for weeks. One year warranty.

คุณลักษณะ (Feature)

  • เหมาะสำหรับติดตามหางลาก หรือทรัพย์สินอื่นๆ
  • แบตเตอร์รี่ความจุสูง
  • ขนาดกะทัดรัด ติดตั้งง่าย
  • สแตนบายใน Motion mode ได้นานนับปี
  • ส่งข้อมูลทุกๆชั่วโมงได้นาน 50 วัน
  • มีข้อมูล cell site
  • มี AGPS เพื่อช่วยให้จับสัญญาณ GPS ได้เร็วขึ้น
  • กันฝุ่นกันน้ำระดับ IP-67
  • สามารถแจ้งเตือนเมื่อมีการเคลื่อนย้าย
  • Web Service ติดตามแบบเวลาปัจจุบันบนแผนที่หรือภาพถ่ายทางอากาศ โดยข้อมูลจะเก็บสำรองไว้เป็นเวลา 3 เดือน


  • APPLICATIONS: Asset tracking | Trailer tracking
  • Large capacity battery
  • Compact design; minimum installation effort
  • Stand-by time up to 1 year under motion trigger mode
  • Tracking once an hour under timer control mode, operation time up to 50 days
  • Pin point cell location
  • AGPS support to improve GPS fixing time
  • IP-67 waterproof housing
  • Alert when movement
  • Indicate the location Web Service to show asset location on map or aerial view. The logging data will be kept for 3 months.
  • ราคา | Price

    เชิญคลิกเพื่อดูคุณประโยชน์ของระบบติดตาม GPS Tracking
    gps tracking system
    ราคา AT-5002 13,900 บาท + VAT

    กรุณาโทรเพื่อรับข้อเสนอพิเศษที่ 02 719 0505, 086 612 5252

    บริการส่งสินค้าฟรี | Free EMS Delivery
    *********************
    โอนเงินเข้าบัญชีออมทรัพย์ ธนาคารกสิกรไทย สาขา ซีคอนสแควร์
    ชื่อบัญชี: บจก. โกลบอลไฟว์
    เลขที่บัญชี: 095-2-08645-8

    บัญชีกระแสรายวัน ธนาคารกรุงไทย สาขาถนนพระราม 9
    ชื่อบัญชี: บจ. โกลบอลไฟว์
    เลขที่บัญชี: 076-6-01921-7
    *********************

    แจ้งการโอนเงินและชึ่อ ที่อยู่ email: global5thailand@gmail.com

    Line ID: global5thailand

    โทร: 083 834 5353

    Specification:

    MECHANICAL & ENVIRONMENTAL CHARACTERISTICS
    Physical Characteristics
    Unit Size (L x W x H): 108 x 92 x 32 mm (±2 mm)
    Weight: TBC
    Material: Anti-UV Plastic housing
    Waterproof Casing: IP-67 waterproof standard
    Smart power switch design without physical button for secure tracking

    Environmental Characteristics
    Operational Temperature: -20°C ~ +60°C (board temperature)
    Storage Temperature: -40°C ~ +85°C
    NOTE: Battery has individual operational and storage temperature limitations!

    General Characteristics
    3-Axes Accelerometer ±16G (default)
    LED
      Blue: GSM Red Power
      Orange: GPS
      Green / Red: Charging Status (charging / charge complete)
      Optional discrete infrared LED available

    Electrical Characteristics
    Power Supply Requirements 3.7 Vdc
    Battery Capacity 5,000mAh Li-Ion cell battery 3.7V
    Power Consumption:
      Transmitting: 200 mA
      Normal: 70 ~ 90 mA
      Idle: 2 ~ 4 mA
      Sleep: 0.1 ~ 0.4 mA

    Battery Characteristics
    Backup Power: 5,000mAh Li-Ion cell battery 3.7V
    Battery Temperature Limitation
    Operation Temp. -20°C ~ +60°C
    Storage Temp. -40°C ~ +85°C
    Charging Connector Charging cable
    NOTE: Must use factory travel charger provided!
    NOTE: Do NOT connect to PC/NB for charging!

    GPS SPECIFICATIONS
    Receiver: GPS L1C/A, SBAS L1C/A, QZSS L1C/A,
    Channels: 56 Channels
    Horizontal Position Accuracy:
          Autonomous: 2.5 m
          SBAS: 2.0 m
    Velocity: 0.1m / sec
    Time: 1 sec synchronized to GPS time
    Datum Default: WGS-84
    Time to First Fix (TTFF):
    Cold Start: 30 sec | Warm Start: 28 sec | Hot Start: 1 sec |
    Aided Starts < 5 s
    Dynamic Conditions
    Altitude: 18,000m above sea level, max
    Acceleration: 4G, max
    Velocity: 500m/sec, max
    Jerk: 20m/sec, max

    GSM SPECIFICATIONS
    Mobile Station Class: Class B Frequency Bands: GSM850 / E-GSM900 / DCS1800 / PCS1900 / UMTS2100
    GPRS Data Transmission:
      GPRS Class 10
      Coding scheme CS1- CS4
      Maximum transmission speed : 85.6 Kb/s DL 42.8 kb/s UL
      Support PBCCH
      Built-in TCP/IP, UDP/IP, HTTP/FTP protocols
    Network Jamming Detection
    CellLocate & Hybrid Positioning
